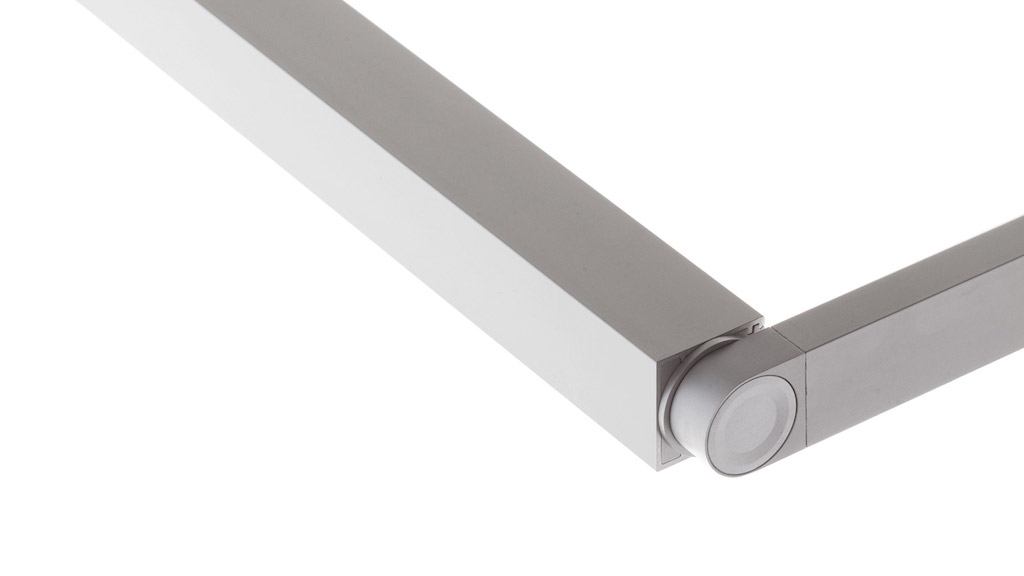

BoxRail | Ceiling-Wall Arm | 107
Direct or indirect lighting for open office, wall wash and ambient applications.
Ideal for general interior and open office applications where an elegant adaptive lighting is required. Highly efficient, extruded aluminum fixture with aesthetically-pleasing mounting options.
Benefits & Features
Minimal Profile, Robust Design
Square profile, 1.14” (29mm) x 1.14” (29mm).
Superior Light Quality & Performance
Output up to 1367 lm/ft (4485lm/m) (HO), 120 lm/W (SO). 80 or 90 CRI & tunable white (2200K-6500K) available.
Adaptive Power Center
Full range dimming power for all protocols. Remote PowerCenter up to 72’ (22m) away.
Better Optics & Beam Control Options
Batwing, FlyWingTM, MicroBaffleTM, diffuse lens and narrow optics availble. Directional control with 370º rotation, angle gauge and lock.
Optics
Roll over the
for quick IES info.
Diffuse
| LO | SO | HO | |
| Efficacy | 98 | 114 | 105 |
| Lumens/ft. | 338 | 676 | 1285 |
| Watts/ft. | 3.5 | 6.0 | 12.3 |
| Based on 4000k @ 85 CRI (avg.) | |||
| 90 CRI available | |||
| Lumen maintenance: 60,000hours L80 @ °25C | |||
| Download IES files for complete information | |||
(1)
White Baffle
| LO | SO | HO | |
| Efficacy | 69 | 79 | 46 |
| Lumens/ft. | 235 | 470 | 559 |
| Watts/ft. | 3.5 | 6.0 | 12.3 |
| Based on 4000k @ 85 CRI (avg.) | |||
| 90 CRI available | |||
| Lumen maintenance: 60,000hours L80 @ °25C | |||
| Download IES files for complete information | |||
(WB)
Black Baffle
| LO | SO | HO | |
| Efficacy | 37 | 43 | 40 |
| Lumens/ft. | 127 | 253 | 481 |
| Watts/ft. | 3.5 | 6.0 | 12.3 |
| Based on 4000k @ 85 CRI (avg.) | |||
| 90 CRI available | |||
| Lumen maintenance: 60,000hours L80 @ °25C | |||
| Download IES files for complete information | |||
(BB)
120° Batwing Lens
| LO | SO | HO | |
| Efficacy | 114 | 131 | 122 |
| Lumens/ft. | 391 | 782 | 1485 |
| Watts/ft. | 3.5 | 6.0 | 12.3 |
| Based on 4000k @ 85 CRI (avg.) | |||
| 90 CRI available | |||
| Lumen maintenance: 60,000hours L80 @ °25C | |||
| Download IES files for complete information | |||
(G1)
40° Symmetric
| LO | SO | HO | |
| Efficacy | 49 | 56 | 52 |
| Lumens/ft. | 166 | 332 | 631 |
| Watts/ft. | 3.5 | 6.0 | 12.3 |
| Based on 4000k @ 85 CRI (avg.) | |||
| 90 CRI available | |||
| Lumen maintenance: 60,000hours L80 @ °25C | |||
| Download IES files for complete information | |||
(S1)
60° Symmetric
| LO | SO | HO | |
| Efficacy | 65 | 75 | 70 |
| Lumens/ft. | 224 | 448 | 851 |
| Watts/ft. | 3.5 | 6.0 | 12.3 |
| Based on 4000k @ 85 CRI (avg.) | |||
| 90 CRI available | |||
| Lumen maintenance: 60,000hours L80 @ °25C | |||
| Download IES files for complete information | |||
(S2)
85° Asymmetric
| LO | SO | HO | |
| Efficacy | 67 | 77 | 71 |
| Lumens/ft. | 229 | 458 | 869 |
| Watts/ft. | 3.5 | 6.0 | 12.3 |
| Based on 4000k @ 85 CRI (avg.) | |||
| 90 CRI available | |||
| Lumen maintenance: 60,000hours L80 @ °25C | |||
| Download IES files for complete information | |||
(A1)
120° FlyWing
| LO | SO | HO | |
| Efficacy | 116 | 135 | 125 |
| Lumens/ft. | 400 | 801 | 1521 |
| Watts/ft. | 3.5 | 6.0 | 12.3 |
| Based on 4000k @ 85 CRI (avg.) | |||
| 90 CRI available | |||
| Lumen maintenance: 60,000hours L80 @ °25C | |||
| Download IES files for complete information | |||
(G2)
40° Symmetric Black
| LO | SO | HO | |
| Efficacy | 34 | 42 | 39 |
| Lumens/ft. | 126 | 252 | 478 |
| Watts/ft. | 308 | 6.1 | 12.4 |
| Based on 4000k @ 85 CRI (avg.) | |||
| 90 CRI available | |||
| Lumen maintenance: 60,000hours L80 @ °25C | |||
| Download IES files for complete information | |||
60° Symmetric black
| LO | SO | HO | |
| Efficacy | 41 | 51 | 48 |
| Lumens/ft. | 153 | 306 | 581 |
| Watts/ft. | 3.8 | 6.1 | 12.4 |
| Based on 4000k @ 85 CRI (avg.) | |||
| 90 CRI available | |||
| Lumen maintenance: 60,000hours L80 @ °25C | |||
| Download IES files for complete information | |||
85° Asymmetric black
| LO | SO | HO | |
| Efficacy | 37 | 46 | 43 |
| Lumens/ft. | 137 | 274 | 521 |
| Watts/ft. | 3.8 | 6.1 | 12.4 |
| Based on 4000k @ 85 CRI (avg.) | |||
| 90 CRI available | |||
| Lumen maintenance: 60,000hours L80 @ °25C | |||
| Download IES files for complete information | |||
36° Button
| LO | SO | HO | |
| Efficacy | 80 | 72 | |
| Lumens/ft. | 534 | 843 | |
| Watts/ft. | 6.9 | 11.7 | |
| Based on 4000k @ 85 CRI (avg.) | |||
| 90 CRI available | |||
| Lumen maintenance: 60,000hours L80 @ °25C | |||
| Download IES files for complete information | |||
(36)
19° x 48° Button
| LO | SO | HO | |
| Efficacy | 69 | 62 | |
| Lumens/ft. | 478 | 729 | |
| Watts/ft. | 6.9 | 11.7 | |
| Based on 4000k @ 85 CRI (avg.) | |||
| 90 CRI available | |||
| Lumen maintenance: 60,000hours L80 @ °25C | |||
| Download IES files for complete information | |||
(19)
